HPG Rotary Actuator with Precision Planetary Gearbox

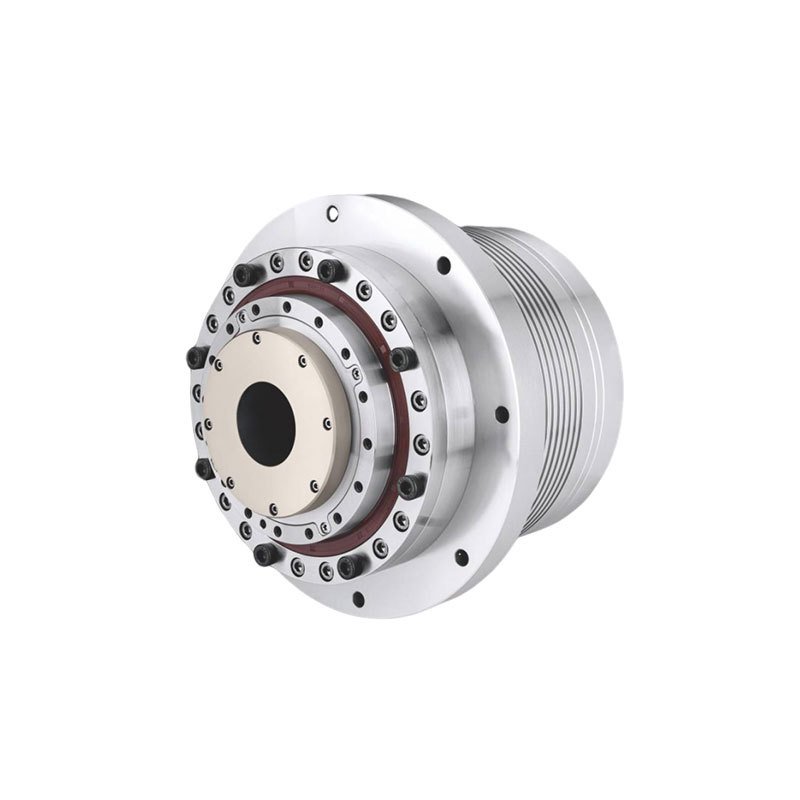

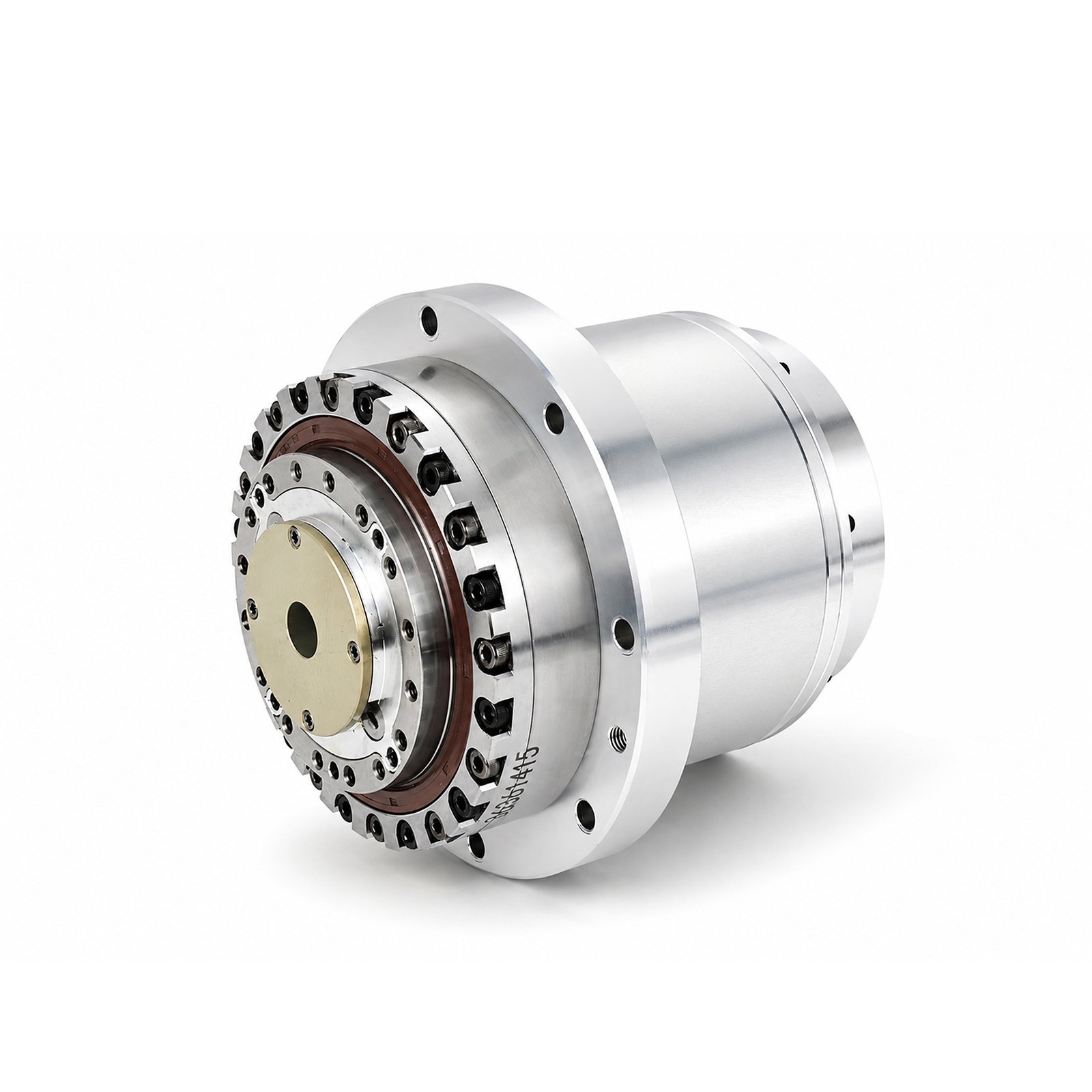

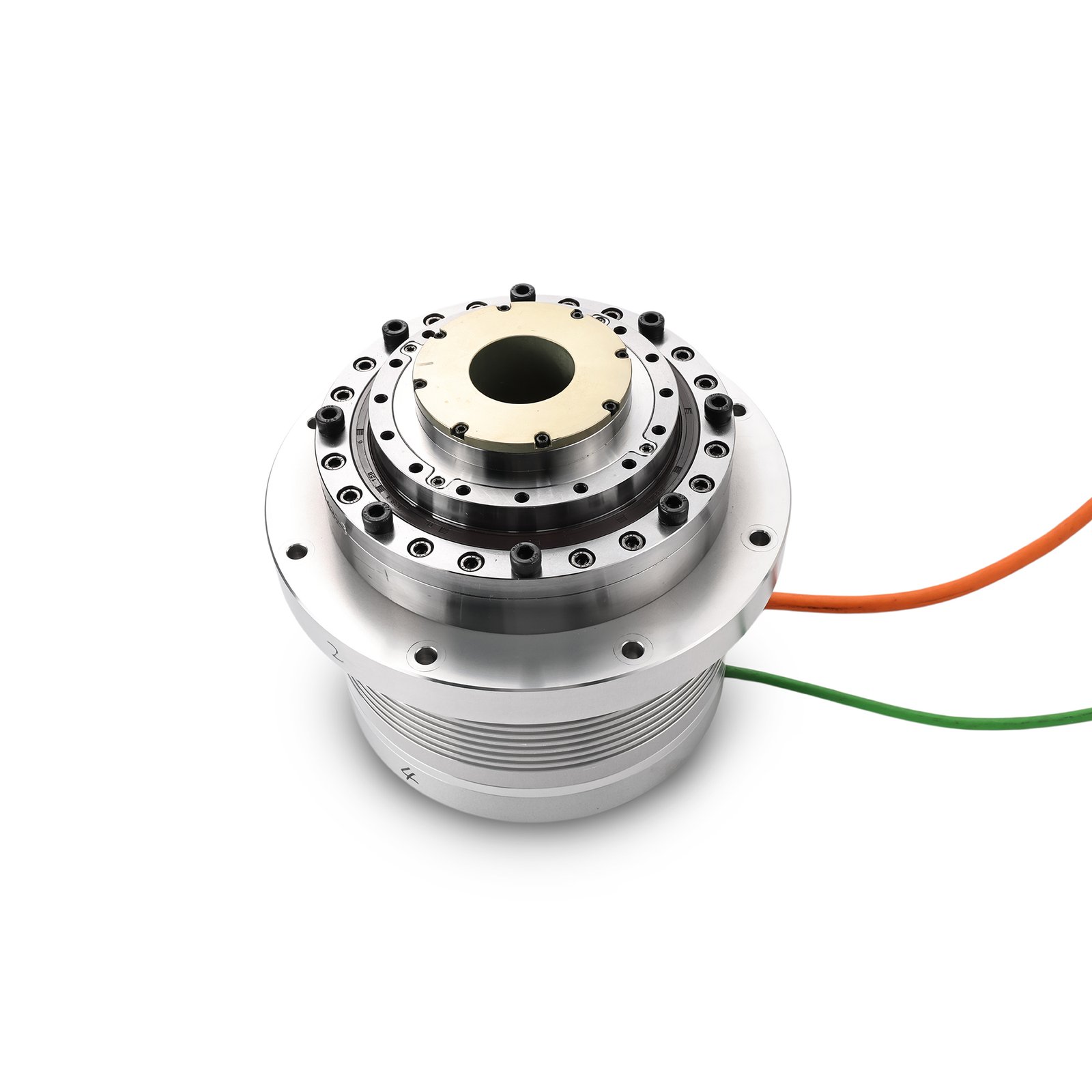

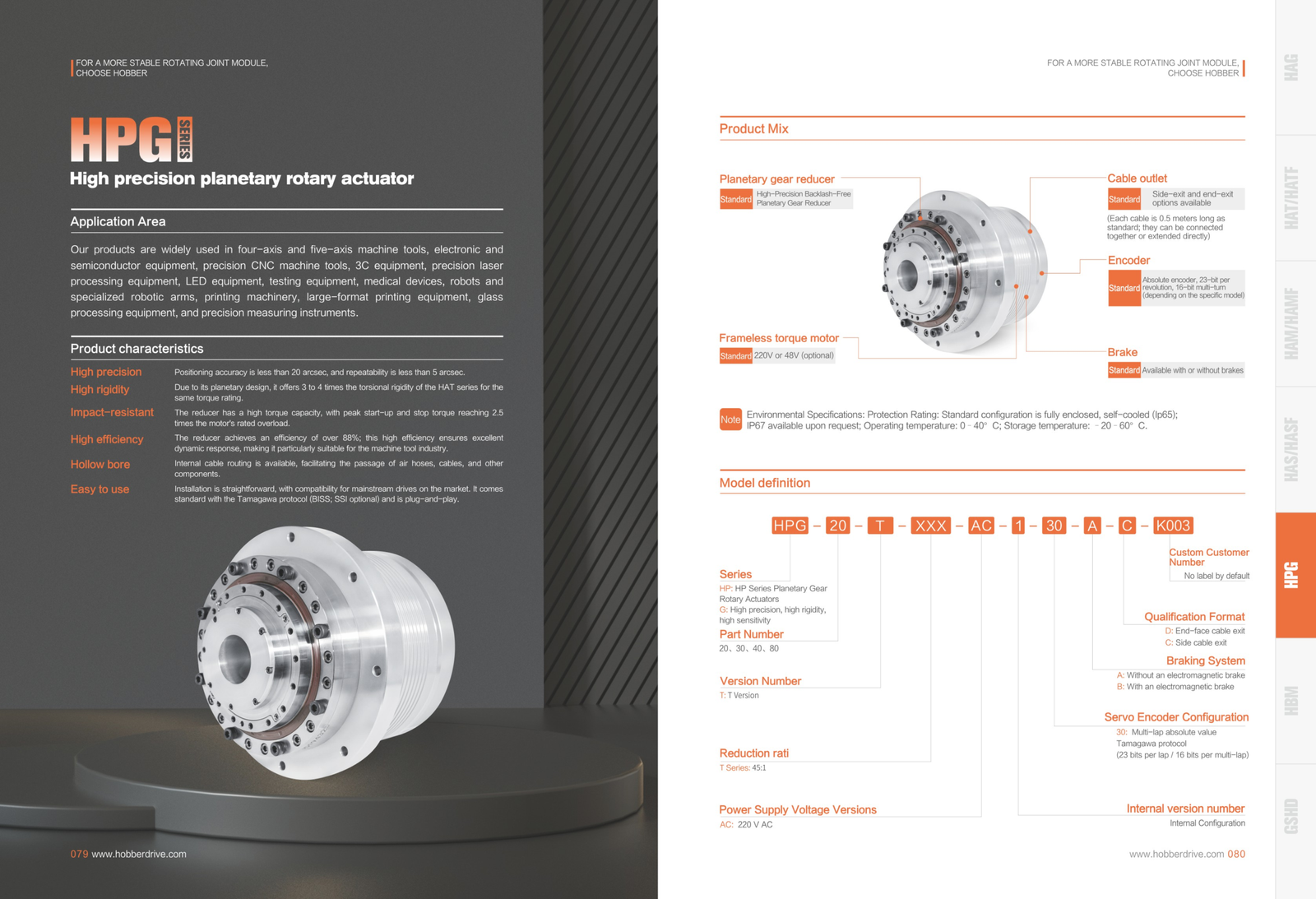

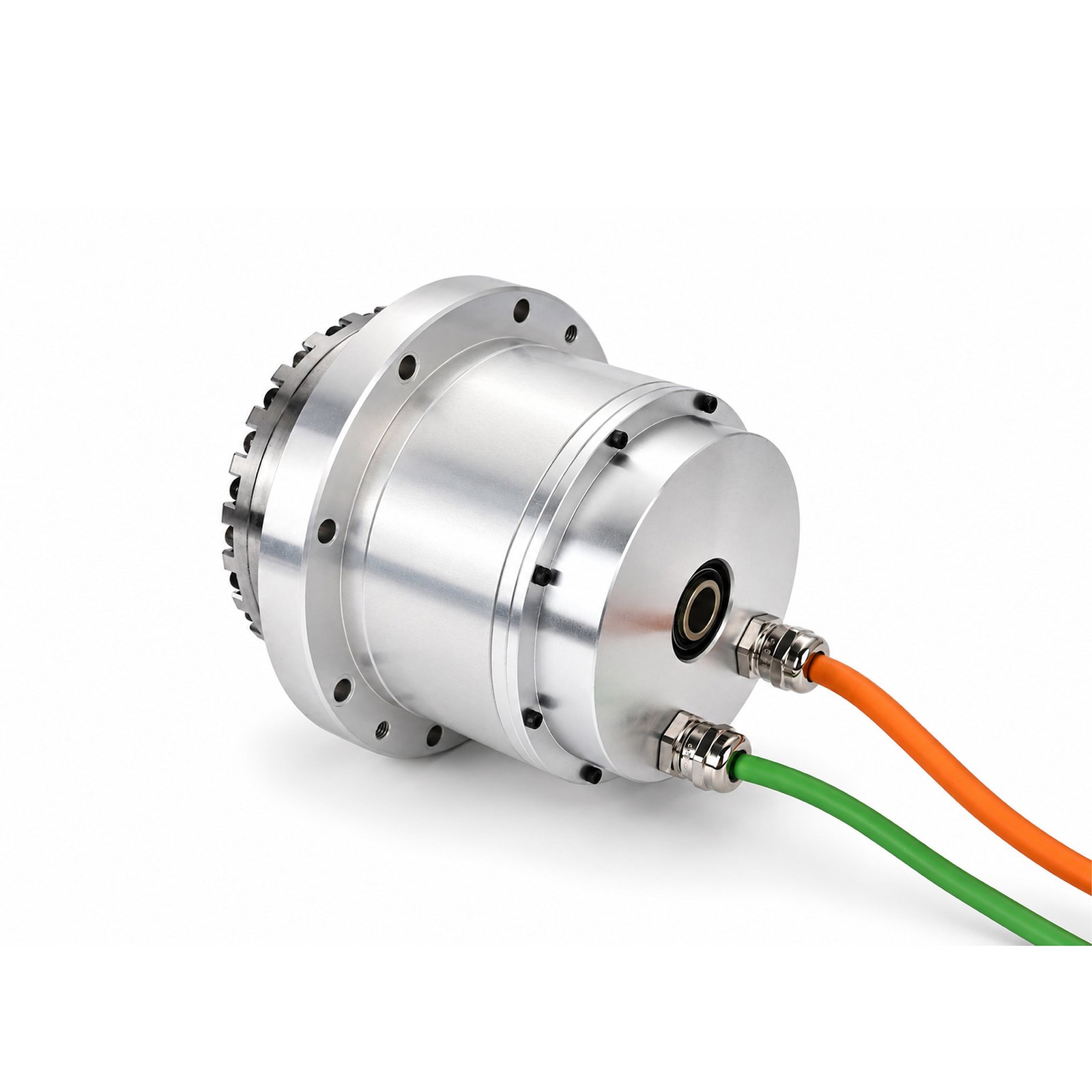

HPG High-Precision Planetary Rotary Actuator

The products are widely used in four-axis and five-axis machine tools, electronic and semiconductor equipment, precision CNC machine tools, 3C equipment, precision laser processing equipment, LED equipment, inspection equipment, medical devices, robots and specialized robotic arms, printing machinery, inkjet printing equipment, glass processing equipment, precision measuring instruments, and other fields.

Description

Product Features

High Precision Positioning accuracy consistently below 35 arcseconds, with T-series repeatability under 5 arcseconds.

High Rigidity Planetary structure delivers torsional rigidity 3-4 times greater than comparable torque ratings (HAT series).

Impact Resistance High torque capacity allows gearbox startup/shutdown torque peaks to reach 2.5 times motor overload rating.

High Efficiency Gearbox efficiency exceeds 88%, ensuring high dynamic responsiveness—ideal for machine tool applications.

Hollow Shaft Internal wiring passage facilitates routing of air tubes, cables, and other components.

User-Friendly Simple installation compatible with mainstream drivers. Standard Tamagawa protocol (BISS, SSI optional) enables plug-and-play operation.

Application Fields

Widely used in four-axis and five-axis machine tools, electronic and semiconductor equipment, precision CNC machine tools, 3C equipment, precision laser processing equipment, LED equipment, inspection equipment, medical devices, robots and specialized robotic arms, printing machinery, inkjet equipment, glass processing equipment, and precision measuring instruments.
